The MAX200 continues Hypertherm's tradition of combining advanced technology and superior quality to deliver operating advantages that are unmatched in the industry.

Operating Data

• Production cutting capacity (piercing)
  - mild steel 1" (25 mm)
• Maximum pierce capacity
  - mild steel 1" (25 mm)
• Maximum cutting capacity (edge start)
  - mild steel 2" (50 mm)

Specifications			Jellemzők
Capacity Mild Steel	Dross free Production (pierce) Severence (edge starts)	25 mm (1") 25 mm (1") 50 mm (2")	Entry-level oxygen cutting system, great for often-changing cutting requirements and production schedules. A proven production cutting system with an attractive initial capital cost.
Stainless Steel	Production (pierce) Severence (edge starts)	25 mm (1") 50 mm (2")
Aluminum	Production (pierce) Severence (edge starts)	25 mm (1") 50 mm (2")
Speed* (Mild steel)	Optimum quality	12 mm (1/2") 2159 mm/m (85 ipm)
Cut angle	ISO 9013 range**	4-5
Weldability		Ready to weld
Process gases by material (Plasma/shield)	Mild steel Stainless steel Aluminum	Air/Air, O2/Air, N2, CO2 Air/Air, N2/Air, N2/CO2, H35/N2 Air/Air, N2/Air, N2/CO2, H35/N2
Process amps	Not all processes available for all materials	40-200 beveling (200)

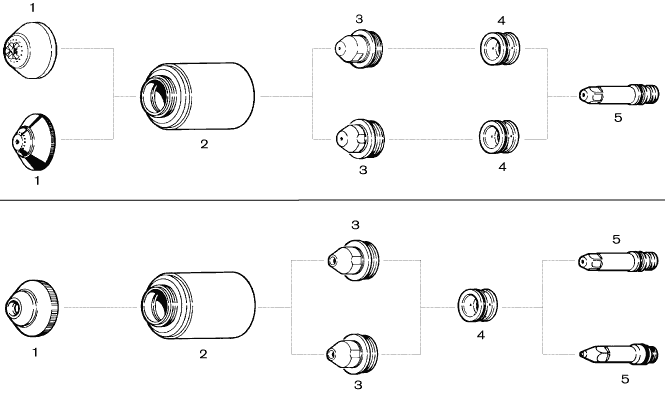

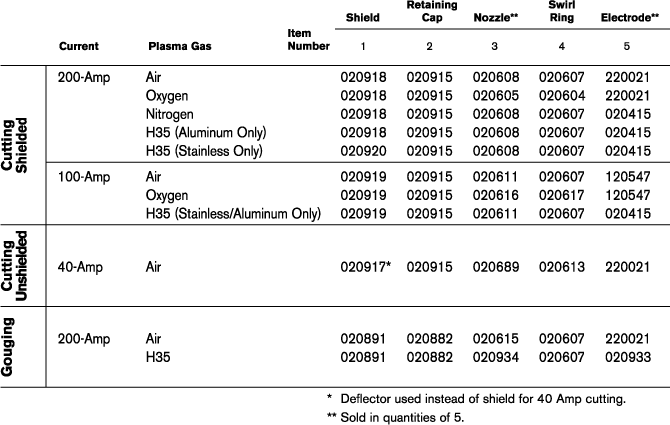

MAX200 Hand Torch Consumables
