Powermax1650

Nyomtatás

Handheld or mechanized plasma system for cutting and gouging metal

Operating data
Cut capacity Handheld Mechanized pierce
Recommended 1 1/4" (32 mm)
Maximum 1 1/2" (38 mm) 3/4" (19 mm)
Severance 1 3/4" (44 mm)
Gouge Capacity
Metal removed per hour: 24 lbs (10.8 kg)
Depth x width: 3/16" (5 mm) x 1/8" (3 mm)

Specifications Jellemzők
Input Voltages
 200 - 600 V, 3-PH, 50/60 Hz, CSA
230 - 400 V, 3-PH, 50/60 Hz, CE		 Applications
  • Hand cutting
  • Gouging
  • Mechanized cutting
    - X-Y table
    - Track systems
    - Pipe systems
    - Robotic systems
Standard system components
  • Power supply
  • T100 hand torch or T100M machine torch
  • Extra consumables for cutting and gouging
  • Work cable with clamp, 15' (4.5 m)
Input Current @ 16 kW
output		 200/208/230/240/400/480/600 V, 3 - PH:
53/51/46/44/27/22/21 A
Rated output Voltage 160 VDC
Output current 30 - 100 A
Duty cycle @ 40°C (104°F) @ 100 amps 60% @ 200 - 208 V
70% @ 230 - 240 V
80% @ 400 - 600 V
Output for 100% duty cycle
@ 40° C (104° F)		 80 A @ 200 - 208 V
85 A @ 230 - 240 V
90 A @ 400 - 600 V
Maximum OCV 300 VDC
Dimensions with handle 26.4" (671 mm) D; 16.8" (427 mm) W;
25.8" (655 mm) H
Weight with Torch 135 lbs (61 kg)
Gas Supply Clean, dry, oil-free air or nitrogen
Flow rate 550 scfh; 9.2 cfm (260 l/min) @ 90 psi (6.2 bar)
Flow pressure 75 psi (5.1 bar) flowing, 25' leads
80 psi (5.4 bar) flowing, 50' leads
Input power cable length 10' (3 m)
Work cable length 15' (4.5 m)
Warranty period Full 3-year power supply warranty and a 1-year torch warranty.

Engine-driven generator operation

Engine Drive
Rating (kW)		 System Output
(amps)		 Performance
(arc stretch)
30 100 Full
22.5 100 Limited
22.5 80 Full
15 80 Limited
15 60 Full

Cut Chart

Material Thickness Current Maximum cut speed*
inches mm amps ipm mm/min
Mild Steel 26 GA
10 GA
1/4
1/2
3/4
1
1 1/4		 0.5
3.4
6.4
12.7
19.0
25.4
31.8		 30
40
60
100
100
100
100		 638
151
132
88
47
28
19		 16205
3835
3353
2235
1194
711
482
Aluminum 1/32
1/8
1/4
1/2
3/4
1		 0.8
3.2
6.4
12.7
19.0
25.4		 30
40
60
100
100
100		 610
204
145
108
57
33		 15494
5182
3683
2743
1448
838
Stainless Steel 26 GA
14 GA
1/4
1/2
3/4
1
1 1/4		 0.5
1.9
6.4
12.7
19.0
25.4
31.8		 30
40
60
100
100
100
100		 631
221
110
79
39
23
14		 16027
5613
2794
2007
991
584
356

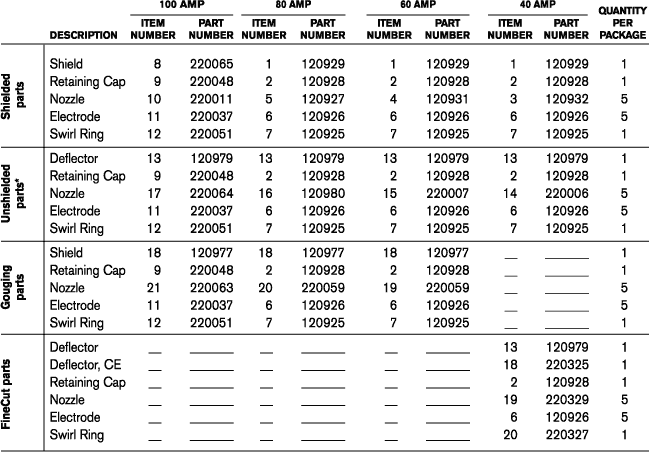

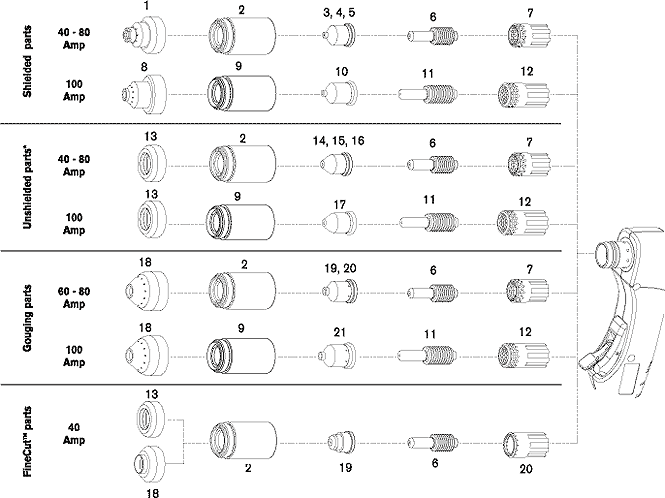

Powermax1650 T100 Hand Torch Consumables
