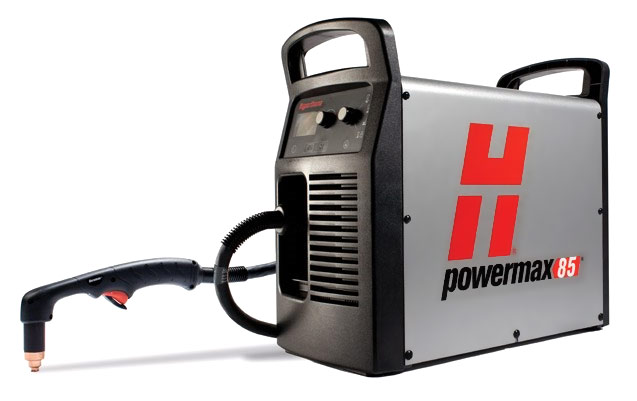

Powermax85

Nyomtatás

Handheld or mechanized plasma system for cutting and gouging metal

Operating data
Thickness Cut speed
Handheld cut capacity
Recommended 3/4" (19 mm) 20 ipm (500 mm/min)
1"(25 mm) 10 ipm (250 mm/min)
Severance 1-1/4" (32 mm) 5 ipm (125 mm/min.)
Mechanized pierce capacity
1/2" (12 mm)
Metal removal rate
Gouge capacity
10.7 lbs. (4.8 kg) per hour
Groove profile
.14" (3.5 mm) D x .26" (6.6 mm) W

Specifications

Input Voltages CSA

CE		 200 – 480 V, 1-PH, 50/60 Hz
200 – 600 V, 3-PH, 50/60 Hz
400 V, 3-PH, 50/60 Hz
Input Current @ 9 kW CSA

CE		 200/208/240/480 V, 1-PH, 52/50/44/22 A
200/208/240/480/600 V, 3-PH, 32/31/27/13/13 A
380/400 V, 3-PH, 15.5/15 A
Output current
20 - 65 A
Rated output voltage
139 VDC
Duty cycle @ 40°C (104°F) CSA


CE		 50% @ 65 A, 230 – 600 V, 1/3-PH
40% @ 65 A, 200 – 208 V, 1/3-PH
100% @ 46 A, 230 – 600 V, 1/3-PH
50% @ 65 A, 380/400 V, 3-PH
100% @ 46 A, 380/400 V, 3-PH
Open circuit voltage (OCV) CSA
CE		 295 VDC
270 VDC
Dimensions with handles 19.7" (500 mm) D; 9.2" (234 mm) W;
17.9" (455 mm) H
Weight with 25' (7.6 m) torch CSA
CE		 64 lbs (29 kg)
57 lbs (26 kg)
Gas Supply Clean, dry, oil-free air or nitrogen
Recommended gas inlet
flow rate / pressure		 Cutting: 400 scfh; 6.7 scfm (189 l/min) @ 85 psi (5.6 bar)
Gouging: 450 scfh; 7.5 scfm (212 l/min) @ 70 psi (4.8 bar)
Input power cable length 10' (3 m)
Power supply type Inverter - IGBT

Engine-driven generator operation

Engine Drive
Rating (kW)
System Output
(amps)
Performance
(arc stretch)
15
65
Full
12
65
Limited
12
40
Full
8
40
Limited
8
30
Ful

Cut Chart

Material Thickness Current Maximum cut speed*
inches mm
amps
ipm
mm/min
Mild Steel 10 GA
1/4
1/2
3/4
1
3
6
12
19
25
45
65
65
65
65
205
145
50
24
13
5000
3900
1430
610
350
Stainless Steel 10 GA
1/4
1/2
3/4
3
6
12
19
45
65
65
65
168
120
40
19
4200
3800
1150
490
Aluminum 1/4
1/2
3/4
6
12
19
65
65
65
190
60
30
5500
1660
770

* Maximum cut speeds are the results of Hypertherm’s laboratory testing. For optimum cut performance, actual cutting speeds may vary based on different cutting applications. Refer to the operator manual for more details.

Engine-driven generator operation

Engine Drive
Rating (kW)		System Output
(amps)		Performance
(arc stretch)
15 60 Full
12 60 Limited
12 40 Full
8 40 Limited
8 30 Full

Cut Chart

MaterialThicknessCurrentMaximum cut speed*
inches mm amps ipm mm/min
Mild Steel 26 GA
10 GA
1/4
3/8
1/2
5/8
3/4		 0.5
3.4
6.4
9.5
12.7
15.9
19.0		 25
40
60
60
60
60
60		 638
264
132
63
42
31
22		 16205
6706
3353
1600
1067
787
559
Aluminum 1/32
1/8
1/4
3/8
1/2
5/8		 0.8
3.2
6.4
9.5
12.7
15.9		 25
40
60
60
60
60		 610
204
145
74
51
33		 15494
5182
3683
1880
1295
838
Stainless Steel 26 GA
14 GA
1/4
3/8
1/2
5/8
3/4		 0.5
1.9
6.4
9.5
12.7
15.9
19.0		 25
40
60
60
60
60
60		 631
221
110
53
35
26
18		 16027
5613
2794
1346
889
660
456

Standard configurations

Below are some of the most common system configurations which include a power supply, torch and work cable.

Input voltages Handheld systems Mechanized systems
Standard
power supply		 Power supply with CPC port
and selectable voltage ratio		 Power supply with CPC port
and selectable voltage ratio
H65 torch
25' (7.6 m)		 H65 torch
50' (15 m)		 H65 torch
25' (7.6 m)		 H65 torch
50' (15 m)		 M65 torch
25' (7.6 m)		 M65 torch
50' (15 m)
200 – 600 V CSA1 083270 083271 083275 083276 083277 083278
400 V CE2 083279 803280 083284 083285 083286 083287

1 For use in the Americas and Asia, except China.
2 For use in countries that require CE, CCC or GOST marks.

Value configurations

Below are some additional packages that include a standard power supply, a 25' (7.6 m) H65 hand torch, and either an H65s torch or other accessories.

Input voltages Standard power supply
With H65 and H65s torches,
25' (7.6m)		 With 25' (7.6 m) H65 torch, Eliminizer air filter and filter cover With 25' (7.6 m) H65 torch, deluxe cutting guide and full consumable kit
200 – 600 V CSA 083272 083273 083274
400 V CE 083281 083282 083283

Custom configurations

Select power supply, torch, work cable and other components.

Power supply options
Standard
power supply		 Power supply with
CPC port and selectable
voltage ratio		 Power supply with
CPC port, selectable
voltage ratio and serial
interface port (RS-485)
200 – 600 V CSA 083234 083266 083267
400 V CE 083235 083268 083269

Component options
Cable length Torches Work cables Control cables


H65

H65s

M65

M65m
Hand
clamp
C-style
clamp

Magnet
Ring
terminal
Remote
pendant		 CNC
spade
plug 3		 CNC
spade
plug 4
15' (4.5 m) 083254 083259
25' (7.6 m) 083247 083251 083255 083260 223125 223194 223197 223200 128650 228350 023206
35' (11 m) 083256 083261
50' (15 m) 083248 083252 083257 083262 223126 223195 223198 223201 128651 228351 023279
75' (23 m) 083249 083253 083258 083263 223127 223196 223199 223202 128652

3 For use with automation equipment that requires divided arc voltage.
4 For use when divided arc voltage is not required.

Powermax65 Duramax™ Torches

H65 75° hand torch
H65s 15° hand torch

M65 full-length machine torch
M65m mini-machine torch

Torch Consumable Parts

Shield
Deflector		 Retaining cap Nozzle Electrode Swirl Ring

Consumable type Torch type Amperage Nozzle Shield/ Deflector Retaining cap Electrode Swirl ring
Drag-cutting Hand 45 220941 220818 220854 220842 220857
65 220819
Mechanized Machine 45 220941 220817 220854 or
220953 (Ohmic)		 220842 220857
65 220819
Unshielded Machine 45 220941 220955 220854 220842 220857
65 220819
FineCut Hand 45 220930 220931 220854 or
220953 (Ohmic)		 220842 220857
Machine 45 220941
Gouging Hand 220797 220798 220854 220842 220857
Machine
